L-Acoustics L-ISA Helps Bring Sound And Stage Together At Pennsylvania Church

by | Jun 24, 2021 | Audio, Case Studies, Production

Orchard Hill Church, located north of Pittsburgh in Wexford, offers a striking architectural design around its 1,200-seat auditorium, and no just as modern is the church’s new sound technology that includes L-ISA by L-Acoustics, integrated as part of a $1.3M design-build renovation of the main worship center.

It’s been clearly shown that when we can connect what we see with what we hear, the technology disappears,” explains Josh Maichele, L-Acoustics Application Manager, House of Worship. Specifically, he adds, our eyes want to watch a pastor on stage but our ears draw our vision towards the PA loudspeakers reinforcing their voice.

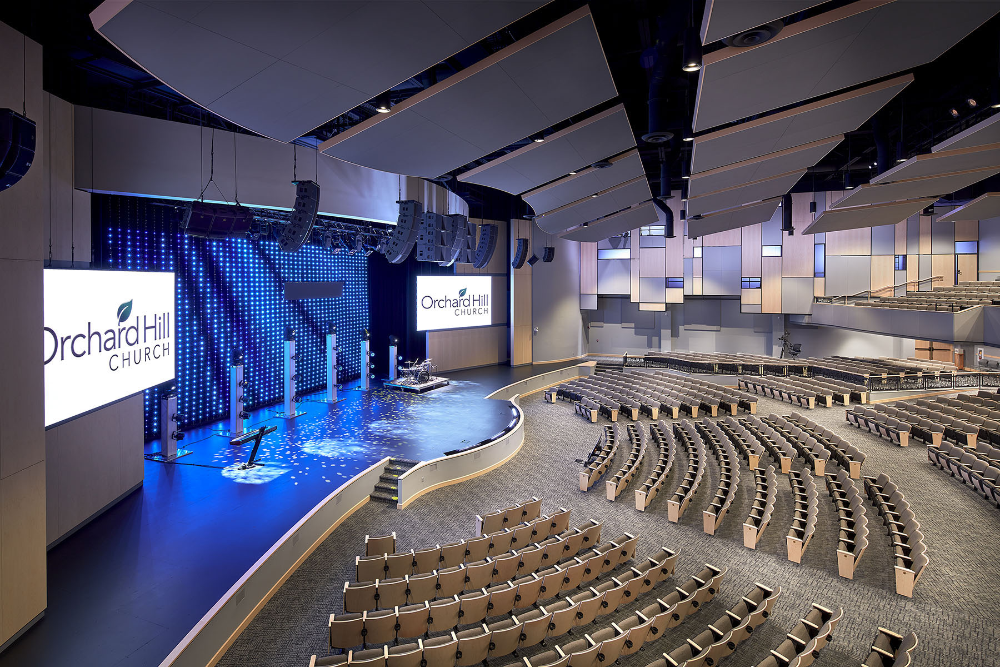

A view from the Orchard Hill Church stage showing the system’s L-Acoustics A Series arrays and KS28 sub hangs. (Photo Credit: Ed Massery)

Orchard Hill Church Technical Director John Cornelius was introduced to L-ISA at the L-Acoustics facility in the Westlake Village neighborhood of Los Angeles, where worship technology directors can experience it first-hand. “It’s a step-by-step process, starting with a demo of the system and then sessions during which visitors can get hands-on with the mix, using prerecorded worship tracks,” Maichele explains. “John arrived knowing nothing about L-ISA, and he left excited by its possibilities for Orchard Hill Church.”

Cornelius, who has been with the church for more than two decades, adds, “I remember going in thinking that immersive audio was kind of a gimmick; I was definitely skeptical. But after a few minutes with Josh going through the system, I was all in. It was very impressive. The thing with immersive is that it’s very hard to describe, but once you experience it, it’s amazing.”

The new immersive system is managed by a pair of L-ISA Processors paired with an Avid VENUE S6L mixing console. (Photo Credit: Ed Massery)

Orchard Hill Church’s new technology, installed with assistance from integrator Key Code Media and L-Acoustics Certified Provider (CPi) Hollowood Sound, consists of five L-Acoustics arrays spread over the stage that comprise the Scene system, with two smaller outside arrays over the stage wings that make up the Extension system. The three center-most hangs feature five A15 enclosures each—four Focus over one Wide—flanked by two outer hangs of five A10, also four Focus over one Wide. Behind the center array are two hangs of three KS28 subwoofers each. And on the far left and right side, three A10 hangs of two Focus over one Wide serve as Extension. Between the Scene and Extension arrays on each side are three A10 Focus used as out fills, bringing the flown array count to 11 hangs. In addition, 14 5XT coaxials are flush-mounted into the face of the stage for front fill.

The Scene and Extension systems are powered by 12 LA4X amplified controllers, while two LA12X are used to drive the KS28 subs and the outfill and ancillary speakers, such as the eight X8 used to cover the very last rows of seating. The immersive system is managed by a pair of L-ISA Processors paired with an Avid VENUE S6L mixing console, and an Auvitran audio toolbox handles the MADI, AVB, and Dante format interfaces for the audio system.

Fourteen 5XT coaxials are flush-mounted into the face of the stage for front fill. (Photo Credit: Tyler Thomas)

“Once you learn how the L-ISA Controller works and you break your mental mode around stereo, it’s easy and even intuitive,” Cornelius says. “And the results are spectacular. It’s a great format for house of worship because we can so precisely locate the sound. That’s nicely experienced during the 20 to 30 minutes of music we have at the beginning of services, but it’s especially useful for the time when the pastor is center stage—L-ISA keeps the focus totally on him, and it really increases engagement.”

L-Acoustics
Key Code Media
Hollowood Sound
