Worship Facility Gear Report: LED Screens

by | Gear, Gear Report, Production, Video

LED Screens are flat panel displays that use an array of light-emitting diodes as pixels for a video display. Their brightness allows them to be used indoors or outdoors, where they are visible even in the direct light of the sun. In recent years, they have been used for many purposes from displaying a static or moving image to showing multiple programmed messages. Further, LED displays are capable of providing general illumination, as when used for stage lighting or other decorative (as opposed to informational) purposes. LED displays can offer higher contrast ratios than a projector and are a good alternative to traditional projection screens, and they can be used for large, uninterrupted (without a visible grid arising from the bezels of individual displays) video walls. MicroLED displays are a variant of LED displays with smaller LEDs, which pose significant development challenges.


1. Neoti LE Series LED Video Panel, 2.4mm

Whether installed in a house of worship, an auditorium, an event center, a training center, or other fixed application, Neoti LE Series indoor, direct-view LED video panels are guaranteed to captivate. These panels are available in two sizes, and they can be wall-mounted or flown for maximum flexibility. Installation and service of Neoti LE Series panels can be a walk in the park, with access in the front and rear. Beyond that, their simple modular design permits fast and easy setup in permanent indoor installations. Ideal where the first viewer is at least 24′ from video wall.

SPECIFICATIONS
  • Type: 47 Video Panel System
  • Pixel Pitch: 2.4mm
  • Pixel Density: 111.63 px per squre inch
  • Refresh Rate: 3840Hz
  • LED Type: Full 14-16 bit Color
  • LED: 64,896 x SMD, per panel
  • Viewing Angle: 160° x 140°
  • Brightness: 800 NITS
  • Video Resolution: 312×208 (single panel)
  • Power Consumption: 182W @ 240V
  • Power Supply: 6 x Power Leads, 47 x Power Jumpers
  • Remote: 1 x controller
  • Height: 19.68″ (single panel)
  • Width: 29.53″ (single panel)
  • Depth: 2.44″ (single panel)
  • Weight: 25 lbs. (single panel)
REASONS TO BUY
  • Affordable
  • Wall mountable or can be flown

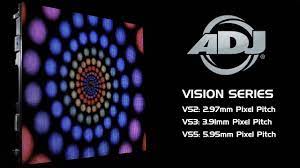

2. ADJ VS2 Vision Series 2.9mm Video Panel

With a pixel pitch of 2.97mm and a brightness of 1,000 NITS, your church will be treated to a stunning display of vibrant, detailed graphics. Among the VS2’s standout features are a 4-module design serviceable from the front and rear, and corner protectors that safeguard the panel during setup, tear down, and transit. Lastly, installation is a breeze: it only takes one person to install an entire wall of panels, given the magnets on the top and bottom that secure the panels.

SPECIFICATIONS
  • Type: LED Flat Panel Display
  • Pixel Pitch: 2.7mm
  • Pixel Density: 72.83 px per sqaure inch
  • Refresh Rate: 3840Hz
  • LED Type: RGB, 256 color
  • LED: 28,224 x SMD2121
  • Viewing Angle: 160° x 140°
  • Brightness: 1000 NITS
  • Video Resolution: 168 x 168
  • Power Consumption: 68W @ 120V
  • Power Supply: PowerCon AC In/Out
  • Height: 19.68″
  • Width: 19.68″
  • Depth: 2.74″
  • Weight: 17 lbs.
REASONS TO BUY
  • Affordable
  • One person set up

3. Chauvet Pro F3X SMD LED Video Panel

Life, movement, vibrance — Chauvet has tapped into advanced stage and display technology with F3X panels. Exhibiting a 3.9mm pixel pitch, F3X panels are outfitted with SMD 2121 LEDs that output an epic 1,200 nits and feature a dynamic contrast ratio of 3,000:1. Not to mention, their specialized LED drivers brandish a refresh rate of 3,840Hz — which means they’ll take fantastically to video and photography. As for setup and servicing, Chauvet has made it simple by crafting the panels out of lightweight, die-cast magnesium housing that hangs with magnetic assistance. In this manner, both front and back sides are easily accessed and serviced. To top it off, Chauvet has included a protective road case as well as power and data linking cables.

SPECIFICATIONS
  • Type: Video Panel 4-pack
  • Pixel Pitch: 3.9mm
  • Pixel Density: 42.28 px per square inch
  • Refresh Rate: 3840Hz
  • LED Type: Tri-color RGB
  • LED: 32,768 x SMD 2121
  • Viewing Angle: 140°, 110°
  • Brightness: 1200 NITS
  • Video Resolution: 128 x 256
  • Power Supply: 4 x powerKON IP65 cords
  • Remote: Novastar (sold separately)
  • Height: 39″
  • Width: 19″
  • Depth: 2.5″
  • Weight: 30 lbs.
  • Case/Gig Bag: Flight Case
REASONS TO BUY
  • Die-cast magnesium housing
  • Affordable

4. Sony ZRD-C15A Micro LED Video Wall Modular Display

The Sony ZRD-C15A Micro LED Video Wall Modular Display combines advanced Micro LED technology with an X1 for Crystal LED processor to create bigger, bolder, more attention-grabbing visual experiences. With 750 nits of brightness, the ZRD-C15A is ideal for presenting high-impact HDR content in sunlit corporate lobbies, virtual sets, and production backdrops. Picture processing technologies ensure spectacular large-scale images with robust clarity, contrast, and color. The ZRD-C15A features a resolution of 384 x 216 dots, with a pixel pitch of 0.06″ (1.58mm).

The borderless design of each energy-efficient Micro LED panel allows multiple ZRD-C15A displays to be tiled seamlessly, creating super-size high-resolution displays with virtually any dimensions or aspect ratio and no bezels or visible gaps. The slim, light Micro LED panels are easy to install and maintain without requiring special skills or complex equipment.

SPECIFICATIONS
  • Type: Seamless design for video walls
  • Pixel Pitch: 0.6″ (1.58 mm)
  • Pixel Density: 42.28 px per square inch
  • LED Type: Tri-color RGB
  • LED: 32,768 x SMD 2121
  • Viewing Angle: 160°, 160°
  • Brightness: 750 cd/m
  • Video Resolution: 384 x 216 Resolution
  • Height: 13.5″
  • Width: 24″
  • Depth: 3″
  • Weight: 20 lbs. 15.1 oz. (9.5 kg)
  • Surface: Deep black coating
  • Contrast Ratio: (0 lx) More than 1,000,000:1
  • Bit Depth: 22-bit Internal Processing
  • Frame Rate: Up to 120 frames per second
  • Signal Interface: 1 in 1 out (2 x RJ45)
  • Power Requirements: AC 100–240 V, 50/60 Hz
  • Power consumption (max.): 150 W (Per-sqm: 721 W)
  • Power consumption (ave.): 58 W (Per-sqm: 279 W)
REASONS TO BUY
  • Seamless Tilting
  • Crystal LED processor

5. Philips BDL2005X 55″ Full Class HD Commercial Video Wall IPS LED Display

Crisp contrast and narrow bezels enable clear, distraction-free imaging. Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you’re showing that content on four screens you get the best possible dot-by-dot resolution.

SPECIFICATIONS
  • Screen Size (Active Area): 54.6” (138.7 cm) LCD
  • Aspect Ratio: 16:9
  • Number of pixels: 1920 (H) x 1080 (V)
  • Pixel pitch: 0.63 (H) x 0.63 (V) [mm]
  • Displayable colors: 8 bits, 16.7M colors
  • Brightness (typical): 500 cd/m2
  • Contrast ratio (typical): 1200:1
  • Viewing angle: 178 degrees
  • Power Supply: AC 100 – 240V, 50 – 60Hz
  • Power Consumption (Max): 250 W
  • Power Consumption (Typ.): 200 W
  • Power Consumption (Standby & Off): <0.5W
  • Dimensions [W x H x D]: 1213.5 x 684.3 x 97.8 mm
  • Weight: 28.8 Kg
  • Gross Weight: 38.4 Kg Energy Efficiency Class B
  • Visible Screen Size: 1209.6 x680.4 mm
  • On Mode Power Consumption(W): 154 W
  • Annual Energy Consumption (kWh): 225 kWh
  • Standby Power Consumption (W): 0.50 W
  • Off Mode Power Consumption (W): 0.30 W
  • Display Resolution (Pixels): 1920 x 1080
  • Network Standby (W): 25W
REASONS TO BUY
  • Affordable

6. LG LAA015F130 130″ Full HD HDR Video Wall Bundle

The LAA015F130 130″ Full HD HDR Video Wall Bundle from LG features detailed imaging and easy installation. Designed for indoor environments, this video wall features a 130″ direct view LED panel. The panel is comprised of nine cabinets, and 12 display modules per cabinet. This design facilitates a Full HD 1920 x 1080 native resolution, HDR10 and HDR10 Pro support, and easy maintenance via front access. A 5000:1 static contrast ratio and 500 nits brightness allow for crisp and bright messaging. Installing in landscape orientation, the LG LAA015F130 features an embedded controller with a quad-core SoC and webOS 4.0 GUI. The screen is also Crestron Connected certified for easy integration with pro AV control systems. Connect to hosts via HDMI or DisplayPort; a USB 2.0 port is also present, along with RS232C control interfaces and an RJ45 LAN port for network-based control. The screen sports integrated temperature and ambient light sensors, and comes with a removable IR receiver, as well as all necessary cables and a spare parts kit.

SPECIFICATIONS
  • Bit Depth / Color Support: 16-Bit (281 Trillion Colors)
  • Panel Type: Direct View LED
  • Aspect Ration: 16:9
  • Display Orienation: Landscape
  • Resolution: 1920 x 1080
  • Max Brightness: 500 nits/cd/m2
  • Contrast Ratio: 5000;1
  • Refresh Rate: 3840 hz
  • Input: 3 x HDMI, 1 x DisplayPort
  • Outputs: NONE
  • USB I/O: 1 x USB-A 2.0
  • Ethernet I/O: 1 x RJ45 (Unspecified Ethernet)
  • Built-In Speakers: Yes, 36 x 4.5 W
  • Power Consumption: Typical: 980.0 W, Maximum: 2900.0 W
  • Lighting lifespan: 100000 Hours at 50% Brightness
REASONS TO BUY
  • HDR10 Pro support
  • 16-Bit (281 Trillion Colors)

7. LG LSAB-V393C 393″ Dual 4K UHD Video Wall Monitor

Bring wide and immersive messaging to your church with the LSAB-V393C 393″ Dual 4K UHD Video Wall Monitor from LG. Comprised of two 217″ direct view LED panels, this 393″ video wall display delivers a dual 4K 7680 x 2160 native resolution and 800 nits of brightness for detailed views. An onboard media player runs on LG’s webOS and features an intuitive on-screen user interface as well as a remote control for easy setup. Use Miracast and Wi-Di for screen sharing and take advantage of hassle free integration and control thanks to Crestron Connected certification, as well as compatibility with a range of pro AV control systems. Using a 16 by 18 array of modules, the LSAB-V393C features front service access for easy maintenance. A service tool is included, along with 5% spare modules, and spare boards and parts. IP20 rated.

SPECIFICATIONS
  • Panel Type: Direct View LED
  • Aspect Ratio: 32:9
  • Resolution: 7680 x 2160
  • Max Brightness: 800 nits /cd/m2
  • Dot Pitch: 1.2 x 1.2mm
  • Pixels Per Inch: 21ppi
  • Tuner: None
  • Outputs: None
  • Speakers: None
REASONS TO BUY
  • Dal 4K 7680 x 2160
  • Direct View LED
DRAWBACKS
  • No Outputs
  • No Tuner
  • No Speakers

8. Planar Systems UC 1.2mm Pixel Pitch 21:9 LED Video Wall Display

Planar DirectLight Ultra Series LED video walls offer always-on, high performance, high resolution display experiences with the finest pixel pitches from 0.6 to 1.2 millimeters for mission-critical and the most refined applications. Planar DirectLight Ultra Series presents several display technology advancements, including MicroLED, that in combination, deliver big performance.

SPECIFICATIONS
  • Product Type: 21:9 Direct View LED Video Wall
  • Resolution (Native): 3840 x 1620
  • HDR Compatible
  • Network Control: RS-232, USB, and LAN
  • Inputs: 4 x HDMI 2.0
  • Contrast Ratio (Static): 7000:1
  • Brightness: 600 nits
  • 24/7 Duty Cycle
REASONS TO BUY
  • 3840 x 1620 Native Resolution

9. NEC E Series dvLED Video Wall

The NEC E Series dvLED Video Wall provides cost-conscious customers with detailed LED imaging without compromising on the service and support. This UHD 4K video wall is designed to deliver a seamless LED display. The front-serviceable design allows easy access and quick maintenance, even in hard-to-reach places. NEC offers full planning and design, installation, and post-installation maintenance support, ensuring a tailored solution allowing for your unique situation.

SPECIFICATIONS
  • Product Type: UHD 4K Panel
  • Pixel Pitch: 1.2mm
  • Front serviceable modules allowing for installation in difficult-to-access areas
  • Pixel cards are hot-swappable and can be replaced without turning the display off
  • Thin and lightweight design allows for greater installation flexibility and also meets ADA requirements
  • LED configuration: 3-in-1 SMD
  • Brightness Adjustment: range 0 to 100% (256 increments)
  • Gamma Correction: 1.0 to 4.0 (default setting: 2.8)
  • Color Temperature: 3000 K to 9500 K (default setting: 6500 K)
  • Signal Interface: Signal input 1 × RJ-45
  • Signal Output: 1 × RJ-45
  • Power Supply: 100 V AC to 240 V AC, 50 Hz/60 Hz
  • Power Consumption: (all white, 100% brightness) 125 W
  • Ingress Protection: Front IP 20 / Back IP 20
  • Maintenance: Front
  • Dimensions: 600 × 337.5 × 29 m
  • Weight: 4.7 kg
REASONS TO BUY
  • Front-serviceable design
  • Post-installation maintenance support

10. Philips BDL1005X 55″ Class Full HD IPS LED Video Wall Display

The BDL1005X 55″ Class Full HD IPS LED Video Wall Display (2 x 2 Videowall Bundle) from Philips bundles four BDL1005X LED Video Wall Displays so that you can create a 2×2 videowall. With its 1.8mm ultra-narrow bezel-to-bezel design and stunning picture quality, you are sure to create the most memorable visual experience.

SPECIFICATIONS
  • Resolution (Native): Full HD (1920 x 1080)
  • Brightness: 500 nits
  • Suitable for 24/7 Use
  • Digital Signage-Capable
  • Audio Output: 3.5mm phone jack x 1 0.5V rms / 2 Channel (L+R), RS232C 2.5mm Phone jack x 2 RS232C in/RS232C out
  • Ports: RJ-45 RJ-45 Jack x 2 (8 pin) 10/100 LAN Port, DVI-D Input DVI-D jack Digital RGB:TMDS (Video), HDMI Input HDMI Jack x 2 (Type A) (18 pin), VGA Input D-Sub Jack x 1 (15 pin), DVI-I (DVI-D &VGA) Output DVI-I Jack x 1 (29 pin)
  • Component Input: BNC Jack x 3
  • Video Input: BNC x 1 (Share with Component_Y)
  • Power Supply: AC 100 – 240V, 50 – 60Hz, 6A
  • Power Supply: AC 100 – 240V, 50 – 60Hz, 6A
  • Dimensions: (Without Stand) [W x H x D] 1211.4 x 682.2 x 98.5 (@Wall Mount) / 106.9 (@Handle) (Without side seal)
  • Weight: (Without Stand) 24.35 Kg
  • Gross Weight: (Without Stand) 36.8 Kg
REASONS TO BUY
  • 1.8mm ultra-narrow design

11. AVer EP65 65″ Class 4K UHD Teleconferencing Touchscreen LED Display

Conduct interactive meetings between your campuses and classes at your church school with the AVer EP65 65″ Class 4K UHD Teleconferencing Touchscreen LED Display. It outputs up to 350 nits of brightness with a 1200:1 contrast ratio to help enhance visibility in bright environments. The included OPS computer has the Windows IoT operating system and Zoom Rooms software built-in for nearly instant teleconferencing.

SPECIFICATIONS
  • Resolution (Native): 4K UHD (3840 x 2160)
  • Capacitive Touchscreen Technology
  • Integrated Camera and Microphone Array
  • Included OPS Computer with Windows IoT
  • Internal Speakers: 10W (L) + 10W (R) [RMS]/8Ω
  • External Speakers: 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz
  • Audio Output: 3.5mm phone jack x 1
  • Audio Input: RCA Jack x 2 3.5mm phone jack x 1, RS232C 2.5mm Phone jack x 2,
  • Ports: RJ-45 RJ-45 Jack x 2 (8 pin), HDMI Input HDMI Jack x 2 (Type A) (18 pin), DVI-D Input DVI-D jack, VGA Input D-Sub Jack x 1 (15 pin), DVI-I (DVI-D &VGA) Output DVI-I Jack x 1 (29 pin)
  • Component Input: BNC Jack x 3
  • Video Input: BNC x 1 (Share with Component_Y)
  • Display Port: in/out Display port Jack x 2 (20 pin)
  • Power Supply: AC 100 – 240V, 50 – 60Hz, 6A
  • Power Consumption: (Max) 320 W
  • Power Consumption: (typ.) 133 W
  • Weight: (Without Stand) 24.35 Kg
REASONS TO BUY
  • Touchscreen
  • Windows IoT operating system and Zoom Rooms software built-in for nearly instant teleconferencing.

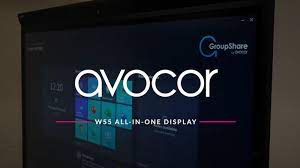

12. Avocor W Series AVW-5555 4K Interactive Touchscreen Display

Designed for small rooms or huddle spaces, the AVE-5555 is Microsoft Azure Certified, providing valuable analysis about the room, aiding in facility management. The built-in IoT Digital Twin sensors measure environmental data such as room usage, temperature, humidity, and lighting conditions, enabling real-time adjustments and room planning. Use one of the two included touch pens or your finger to interact with the W Series, which supports up to 20 simultaneous touch points on its anti-glare 4K display. For connectivity, USB-C provides a single-cable solution for the Ethernet, conference camera, far-field microphone, front-facing 40W soundbar, and video output. A host of convenient side connections are available for broad compatibility, including an HDCP DisplayPort 1.2 input, two HDMI 2.0 inputs, USB-A 3.2 Gen 1 ports, and a 3.5mm audio jack.

SPECIFICATIONS
  • Product type: 4K UHD 3840 x 2160 LED Panel
  • Refresh Rate: 60 Hz
  • Connectivity: 2x HDMI / 1x DisplayPort / USB-C
  • 20-Point Multi-Touch screen
  • Inputs: 2 x HDMI (2.0) 1 x DisplayPort (1.4)
  • Outputs: 1 x 1/8″ / 3.5 mm (Analog Audio) 1 x TOSLINK Optical (Digital Audio)
  • Built speakers 4x10w
  • Built in Camera 1080 MP Photo
  • Power: Standby: < 0.5 W Maximum: < 310.0 W
  • AC Power Input: 100 to 240 VAC, 50 / 60 Hz
  • Dimensions: 50.4 x 33.8 x 4″ / 128 x 85.9 x 10.2 cm
  • Weight: 99.9 lb / 45.3 kg
REASONS TO BUY
  • IoT Digital Twin sensors
  • 20 simultaneous touch points
  • Anti-glare 4K display

13. Sharp 55″ 1080p Video Wall LED Monitor with Uniform Color Calibration Technology

The 55″ 1080p Video Wall LED Monitor from Sharp features a 3.5mm slim bezel that gives you the flexibility to build video walls that will complement virtually any space. Wherever it’s installed this LED monitor will convey your message. With Sharp’s UCCT (Uniform Color Calibration Technology), color reproduction and brightness are consistent on the LCD monitor.

To help ensure safe handling, all four of the monitor’s corners contain durable carrying handles. Together with the monitor’s light weight, the handles help to enable safe transport and easy, time-saving installation whether mounted vertically or horizontally. The monitor is suitable for 24-hour use.

SPECIFICATIONS
  • Screen size: 55″
  • Display: Full HD 1920 x 1080 LED
  • Full array LED backlight
  • Sharp UCCT (Uniform Color Calibration Technology)
  • Brightness: 500 cd/m2
  • Contrast ratio: 4000:1
  • 24/7 use certified
  • Screen Area: 47.6 x 26.8″ / 121 x 68 cm
  • Contrast: 4000:1
  • Inputs: 1 x HDMI, 1 x DE-15/DB-15 (VGA), 1 x RCA (Component), 1 x DisplayPort, 1 x DVI-I, 1 x 1/8″ / 3.5 mm
  • Outputs: 1 x DisplayPort, 1 x DVI-D, 1 x 1/8″ / 3.5 mm (Analog Audio)
  • Ethernet I/O: 2 x RJ45 (Unspecified Ethernet)
  • Power Consumption: Typical: 185.0 W
REASONS TO BUY
  • .5mm slim bezel
  • Rugged
